MistfireWater-vapour fireplaces · Calgary

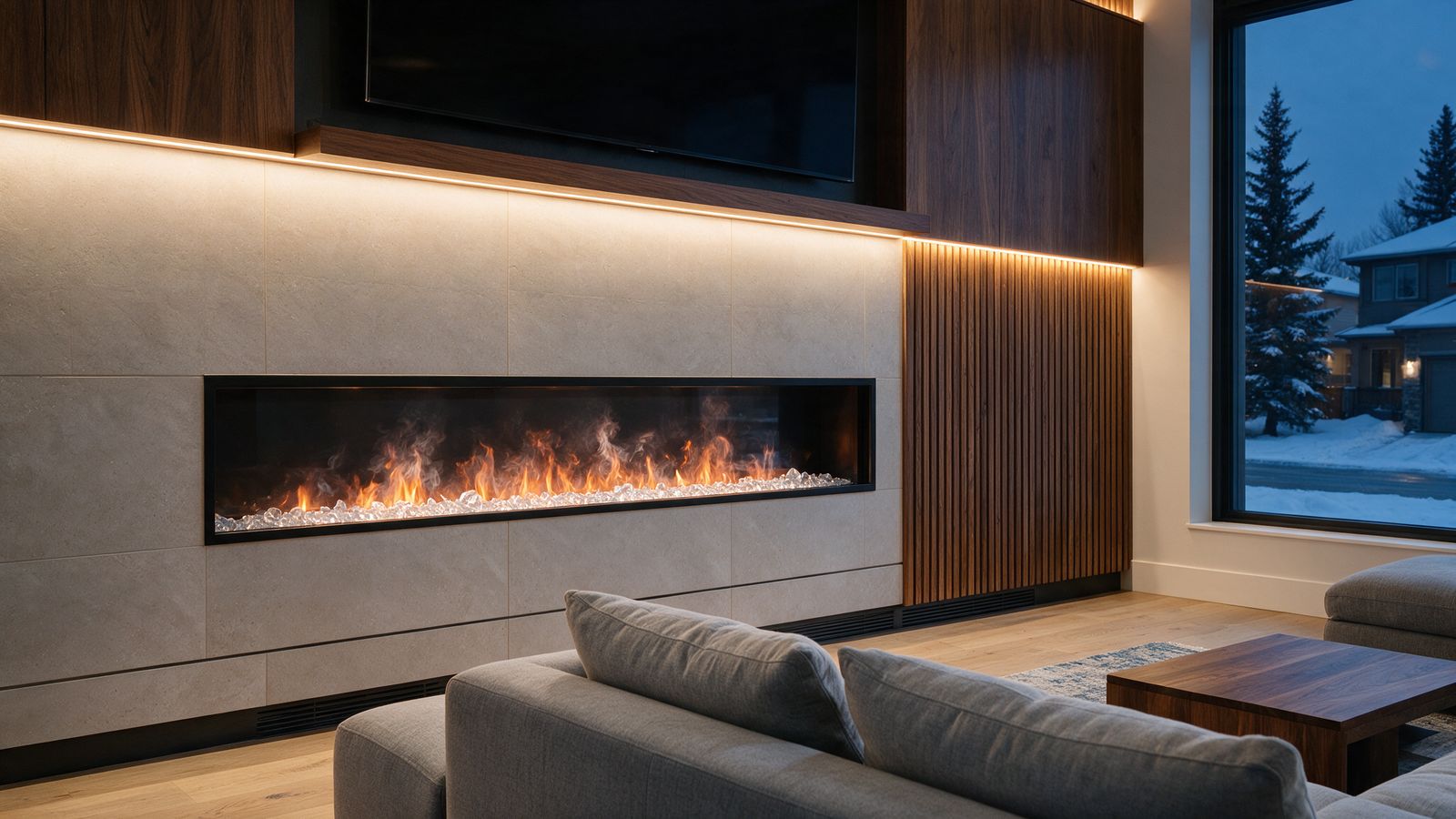

Concept render, not a photograph: a wide linear water-vapour fireplace with a black bezel and clear acrylic media set into a pale tiled media wall with walnut slats, a television mounted above a clear band of wall, a grille slot near the floor.
Priced per project

Media wall · feature wall · Calgary

The fire in the wall you're already building.

Three Optimyst formats frame into a media wall: the Linear (46, 66 or 86 in, with a heater), the glass-fronted Pro Box (40 or 60 in, single-sided or see-through), and the plumbed, flame-only e-MatriX (35 in, front, corner or bay). We design the chase, the air, the water and the power into the wall, then build the wall.

See it in my space Compare the three
Concept render

A 66-inch Linear in a media wall, TV above. A concept render made from Dimplex's product photos of the unit, not a photograph of an install.

What goes in

Three formats, one decision each.

Heat and width point to the Linear. A glass front, a see-through wall or a drafty room point to the Pro Box. A flame-only, plumbed, corner or bay opening points to the e-MatriX. The middle size of each is shown; the comparison table has all nine.

  • Optimyst Linear

    Linear 66 in

    OLF66-AM
    Size
    67-1/2 × 31-1/2 × 11-7/8 in
    Needs
    68 × 32-1/2 × 12 in structural framing (manual); drywall opening 66-3/16 × 17-1/2 in
    Water
    manual-fill reservoir, or a plumbed 1/4 in line with CDFIPLUMB-KIT
    Heat
    Yes. proportional fan-forced Comfort$aver heater with Eco, Boost and fan modes; full heat needs the 240 V connection
    Air
    120 in² fresh air, with an open path to the unit
    Power
    120/240 V, 1,480 W at 120 V; 2,180 W at 240 V, hardwired; OLFPLUG plug kit for 120 V
    $9,369.99MSRP, CAD, June 2026 list

    Not yet on file: reservoir capacity and run time; weight; explicit clearance figures (manual, not yet transcribed). We confirm these from the manual at the site visit.

  • Optimyst RGB Pro Box

    RGB Pro Box 40 in

    CBX1000-AM
    Size
    44-7/8 × 31-3/4 × 16-1/4 in
    Needs
    the 2026 CBX box's own manual is not yet on file; the previous Pro Box (GBF1000-PRO) framed at 45-1/4 × 32-3/8 × 14-3/4 in, which is context only, not a number to build to
    Water
    optional plumbing connection for continuous supply (CDFIPLUMB-KIT) or refill
    Heat
    To confirm. Dimplex's Pro Box page describes a discreet fan-forced heater (about 400 sq ft on the previous generation); confirm the 2026 box's rating before counting on it
    Air
    fresh-air requirement to confirm from the CBX manual
    Power
    120 V, hardwired; CDFI-PLUGKIT for plug-in
    $6,399.99MSRP, CAD, June 2026 list

    Not yet on file: framing dimensions; electrical rating; heater output; air inlet; clearances; run time. We confirm these from the manual at the site visit.

  • Optimyst e-MatriX

    e-MatriX 35 in, front

    FEF3226L1
    Size
    35-1/8 × 37-5/8 × 20 in (price list); spec sheet: 35 wide, 37 to 37-3/4 high, 20-1/4 to 22-1/4 deep
    Needs
    36 × 38-1/8 × 21 in
    Water
    direct plumbing connection for continuous supply (standard)
    Heat
    No. Flame only
    Air
    80 in² fresh air, with an open path to the unit
    Power
    120 V, 270 W, hardwired to a 120 V circuit
    $8,189.99MSRP, CAD, June 2026 list

    Not yet on file: water supply pressure and fitting spec; clearances around the open glass edges; weight; whether the log set is included. We confirm these from the manual at the site visit.

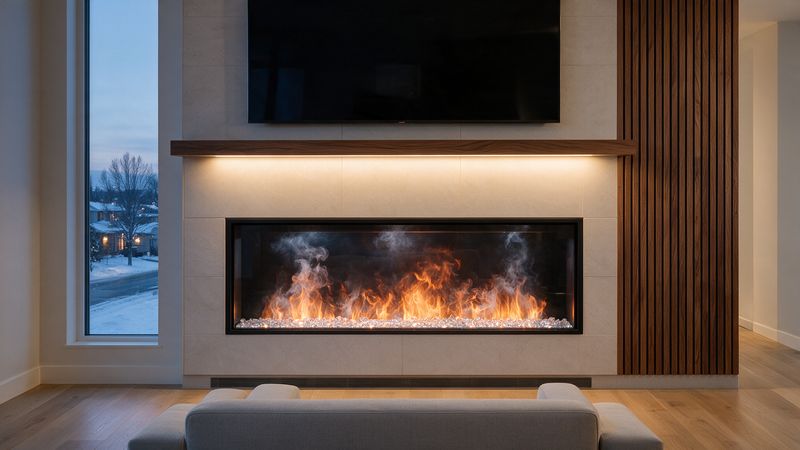

Concept render, not a photograph: a linear water-vapour fireplace with a black bezel and clear media in a pale tiled wall with a walnut slat panel and a shelf, a television above. Concept render

Linear: 46, 66, 86 in

An open trough of flame in a black bezel, the format most people picture under a TV. Fan heater with Eco and Boost modes; full output on 240 V. Reservoir or plumbed. $8,159.99 / $9,369.99 / $10,499.99.

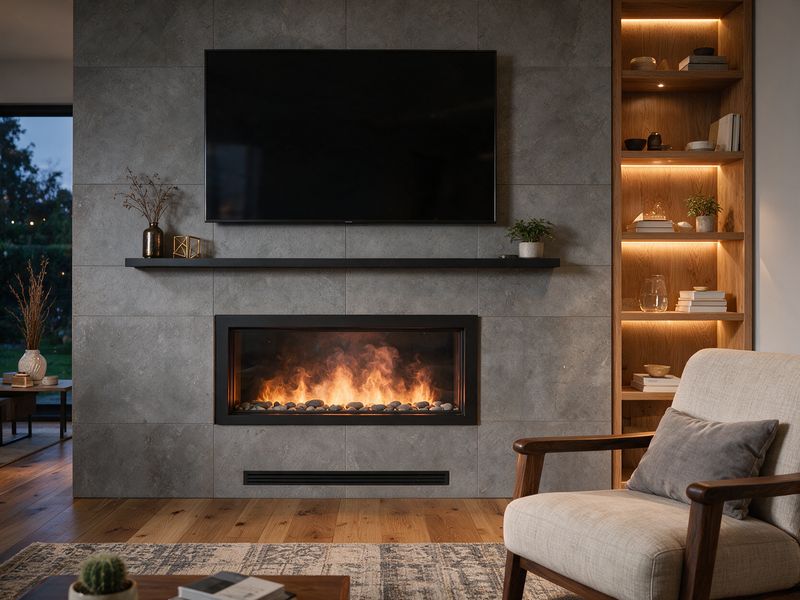

Concept render, not a photograph: a glass-fronted water-vapour firebox with river rock inside, set into a grey stone-tiled wall with a black shelf and a television above. Concept render

Pro Box: 40, 60 in

A finished glass-fronted box with the RGB cassette flame inside, and a rear glass pane for see-through walls. Dimplex describes a fan heater; the 2026 box's manual is not on file yet, so framing and ratings are confirmed before we frame. $6,399.99 / $10,289.99.

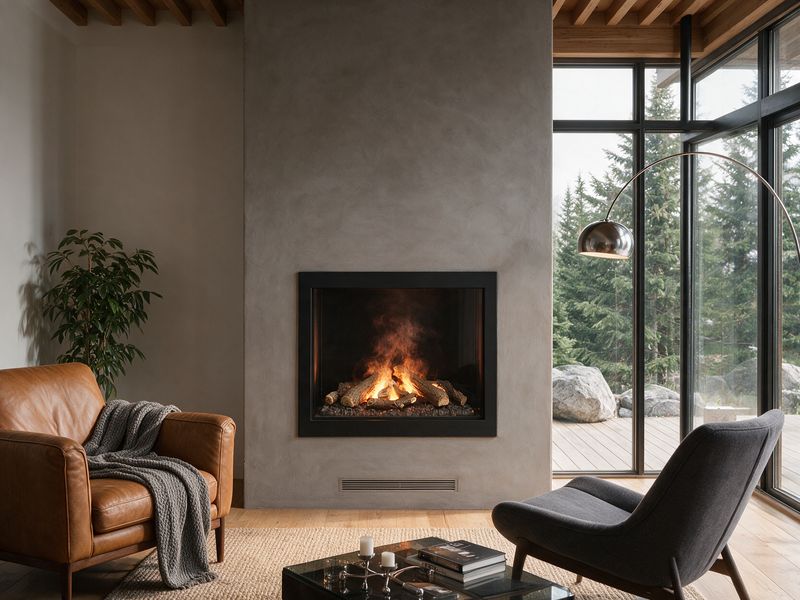

Concept render, not a photograph: a tall glass-fronted water-vapour firebox with a log set built flush into a smooth grey plaster wall, a grille slot near the floor, daylight from a side window. Concept render

e-MatriX: 35 in, four ways

Front, left corner, right corner or three-sided bay, in a tall glass-edged box, plumbed for continuous running, no heater, 270 W. The architectural one, and the deepest at 21 in. $8,189.99 to $8,767.99.

How it's built

How it's built.

Section through the wall with a Linear: the chase, the air path, the water, the wiring, and the clear zone under the TV. All figures are Dimplex's.

ceiling existing wall behind (or the chase becomes a bump-out into the room) chase 12 in deep (Linear) 21 in (e-MatriX) reservoir, heater, fans flame trough, open to the room drywall opening 17-1/2 in high open air above the flame; a mantel or shelf break can sit here TV on the wall face: height set by the TV maker's over-heater rule (heat vents forward) fresh-air grille near the floor: 80 / 120 / 160 in² (46 / 66 / 86), path up to the unit 1/4 in cold line up the chase (plumb kit + softening cartridge + shutoff), or a reservoir behind an access door e-MatriX: plumbed always wiring enters top-right rear (Linear) 120 V, or 240 V for full heat; the 86 in gives no heat on 120 V bottom of unit 5 to 50 in off the floor (Dimplex, for viewing) finish: drywall, slats, tile, stone veneer; overhang per manual THE ROOM no register or door draft aimed at the wall
How it's built. Section through the wall with a Linear. The unit sits in a chase 12 in deep with its bottom 5 to 50 in off the floor; the flame trough is open to the room. Air comes in near the floor and rises to the unit; water (blue) comes up the chase; wiring enters top-right rear. The TV hangs above a clear zone. The e-MatriX and Pro Box change the depth and the front (glass), not the idea. All figures are Dimplex's.

The job

The wall, the services, the fire.

A media wall with a water-vapour fire is a normal media wall plus three things: a real air path, a water method, and a chase deep enough. We plan those first and the finish second, so nothing gets closed up wrong.

  • The drawingElevation and section of the wall with the unit, TV, mantel, air grille, water and power marked, and the finish called out. You approve it before framing.
  • The framingA chase to the unit's framing table (12 in for the Linear, 21 in for the e-MatriX, the Pro Box confirmed from its manual), not load-bearing, with the drywall opening exactly as the manual draws it.
  • The airA fresh-air inlet near the floor with a continuous path up to the underside of the unit: 80, 120 or 160 in² for the Linear by size, 80 in² for the e-MatriX, larger if a grille covers it. Hidden in a plinth or a slot.
  • The waterA 1/4 in cold line up the chase through a shutoff, a leak-detection valve and a softening cartridge (Dimplex's plumb kit), or a reservoir with an access door on the Linear and Pro Box. The e-MatriX is plumbed always.
  • The powerAn electrician runs the circuit: 240 V for full heat on the Linear (the 86 in gives no heat on 120 V), 120 V otherwise, dedicated 15 A, permit included. TV outlet and cable route while the wall is open.
  • The finishDrywall and paint, slat panels, large-format tile, stone veneer, a floating mantel, shelf lighting: whichever the drawing shows, built to the manual's overhang rules around the opening.
  • The fireUnit set, wired, plumbed or filled, media placed, remote and app paired, flame and heat tested, then a walkthrough of the clean and the controls.
  • Your own contractor?Then we supply the unit at list price, hand over the planning sheet, check the framing before it closes, and set and commission the fire. The wall stays their work and their price.

Before you decide

What a water-vapour media wall asks of you.

  • The wall gets deeper.

    Twelve inches for the Linear, twenty-one for the e-MatriX. That is a chase or a bump-out, not a flat wall, and it is why we draw the room before we quote.

  • There is a grille somewhere near the floor.

    Every unit needs its fresh-air path. We hide it in a plinth, a shadow line or a slot, but it exists, and it stays clear of rugs and furniture.

  • Plumbed is the sane choice in a wall.

    A reservoir behind a finished wall means an access door and a jug every so often. A 1/4 in line up the chase during construction is a small job and you never think about water again. The e-MatriX gives you no choice; it is plumbed.

  • Full heat on the Linear means 240 V.

    On 120 V the 46 and 66 heat at reduced output and the 86 does not heat at all. If warmth matters, the electrician runs 240 V while the wall is open.

  • The Pro Box is new for 2026.

    Its price and overall size are on the list; its own manual is not on file yet. We confirm framing, air and electrical from Dimplex before we frame around one, and we say so on the quote.

  • The TV goes above, on the TV's terms.

    Dimplex's rule for the heated units is the TV maker's over-heater rule. We plan the height, or a mantel break, on the drawing, and we keep open air directly above the flame.

  • Drafts flatten it.

    A register blowing at the wall or a door that stays open will push the flame around. If the room is drafty, the glass-fronted Pro Box is the right unit, and Dimplex says so.

  • It needs a clean.

    The reservoir and transducers get a wipe with soap and water at the interval in the unit's manual, and the softening cartridge gets changed a few times a year. Plumbed with softened water is the lightest version of this.

See it in my space

Send a photo of the wall.

Straight on, from where the couch is, with the wall width and ceiling height if you know them. You get the picture back with the fire in it, plus a range for the wall. Usually within a couple of days.

  • Take one photo of the wall, opening, counter or corner from where you usually sit. Phone is fine.
  • We place the right unit for your depth, water and heat answers and send the picture back, labelled as a concept.
  • You get a rough price: the unit at list price, the build as a range, and what a site visit would confirm.

Your photo is used only to make your render and is not shared. Prefer email? hello@mistfire.ca

So we know it's inside the area we cover.
Decides which units fit. Guess if you have to.
Linear, Aura, Revive, Mapleton and Pro Box heat; the cassette and e-MatriX are flame only.
Plumbed or refill: this decides it.
By sending this you agree to our privacy notice.

Questions

Questions people ask about media walls.

Can the TV go above a water-vapour fireplace?

Usually, planned properly. For the heated units (Linear, Pro Box) Dimplex's rule is the television maker's own rule for mounting over a heater; the heat vents at the front, not up the wall. On every unit the vapour rises a short way above the flame and dissolves, so we keep a clear zone above the flame and set the TV height, or a mantel break, at the design stage. The e-MatriX has no heater at all.

How deep does the wall need to be?

The Linear frames 12 inches deep, the Pro Box is 16-1/4 inches deep overall (its 2026 framing figure is still to be confirmed from Dimplex's manual), and the e-MatriX frames 21 inches deep. So a standard 2x4 or 2x6 wall is not enough on its own: the fire goes in a chase or a bump-out, which is what a media wall is anyway. The wall also needs a fresh-air inlet near the floor with a clear path up to the unit.

Which of the three heats?

The Linear has a fan heater (Comfort$aver, with Eco and Boost modes); wire it 240 V for full output, and note the 86-inch gives no heat at all on 120 V. Dimplex describes the Pro Box with a fan heater too; we confirm the 2026 box's rating before promising it. The e-MatriX is flame only.

Do I have to plumb it?

The e-MatriX, yes: it is designed for a direct water connection. The Linear and Pro Box run from a reservoir you fill or from Dimplex's plumb kit on a cold line. In a wall we recommend plumbed, because a reservoir behind a finished wall means an access door and a jug; a 1/4 inch line up through the chase is simple during construction. Either way there is a shutoff you can reach.

Can I replace the electric or gas fireplace already in my wall?

Often. The existing opening rarely matches an Optimyst's framing, so the wall around it gets rebuilt: new framing, the air path, water and power, and the finish. If it is a gas unit, a licensed gas fitter caps the line and the vent is dealt with. It is quoted like a new wall, sometimes a little more because of the tear-out.

Can it be see-through?

The Pro Box takes a rear glass pane (on the price list, $440.99 for the 40 inch and $827.99 for the 60 inch) for a see-through wall between two rooms. The Aura and the e-MatriX bay open on three sides for a half wall; that is the half-wall page.

Do you build the whole wall or just the fireplace part?

Either. If you have a contractor building the wall, we supply the unit, hand them the planning sheet, check the framing before it closes up, and set and commission the fire. If you don't, we design and build the wall: framing, finish, TV position, cable routes, lighting, mantel. The price range on this page is for the second case.

For trades

Framers, finishers, builders: the planning sheets.

Framing tables, air, water, power and clearances for the Linear, Pro Box and e-MatriX, one page each, every figure Dimplex's, with the unknowns marked instead of guessed.
